VideoSolutions ULUSSES SDI16 + DV Multiviewer
Rate:
0 ratings
Log in to rate
Already own it? Write a review

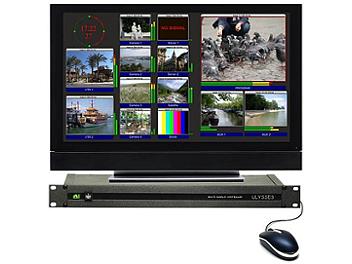

shown with optional TV
VideoSolutions ULUSSES SDI16+DV multiviewer
Allows to control the colored video images from 20 video signal sources in real time on Full HD monitors. Can be used instead of monitors walls in broadcast TV stations, in cable TV stations, in OBVans, security video systems, etc.
Application:
* TV-channel Master Control
* Satellite TV apparatus rooms
* Cable network apparatus rooms
* IPTV network apparatus rooms
* Studio apparatus rooms
* Mobile TV stations
* Control centres
* Sport competitions
* Concerts, mass events
VideoSolutions ULUSSES SDI16+DV multiviewer
Allows to control the colored video images from 20 video signal sources in real time on Full HD monitors. Can be used instead of monitors walls in broadcast TV stations, in cable TV stations, in OBVans, security video systems, etc.
Application:
* TV-channel Master Control
* Satellite TV apparatus rooms
* Cable network apparatus rooms
* IPTV network apparatus rooms
* Studio apparatus rooms
* Mobile TV stations
* Control centres
* Sport competitions
* Concerts, mass events
- The simultaneous viewing of 20 videosignal sources (up to 20 windows on the screen)
- Available inputs configurations: composite (PAL/NTSC) or SDI or composite/SDI which can be reassigned in the menu. This device has modular construction, where each module has 4 inputs of the same type. This allows to build different inputs configurations. For example: 8 SDI (2 modules) and 4 composite inputs (1 module)
- The maximum modules number is 4, so that the maximum inputs number is 4x4=16.
- Besides, there are always 4 DV inputs which can be used for displaying on the screen (option).
- Any window can be moved, sizing, freezing and fullscreened by mouse.
- Ready layout can be saved/restored from/to memory as preset.
- Graphic objects such as logo, clock can be displayed.
- Audio level meters can be displayed (up to 4 channels for one window).
- Images features such as brightness, contrast, saturation and hue can be adjusted .
- Text titles such as source name, current mode, etc. can be displayed.
- Tally function allows to display Program/Preview marks for corresponding sources (option).
- 2 SDI outputs to which inputs can be switched by mouse or GPI signal (option).
- Controlling through USB, Ethernet, RS-422/485.
- 19'' 1U Stand alone device.
- Power 220 V.
- Weight 3 kg.
- Available inputs configurations: composite (PAL/NTSC) or SDI or composite/SDI which can be reassigned in the menu. This device has modular construction, where each module has 4 inputs of the same type. This allows to build different inputs configurations. For example: 8 SDI (2 modules) and 4 composite inputs (1 module)
- The maximum modules number is 4, so that the maximum inputs number is 4x4=16.
- Besides, there are always 4 DV inputs which can be used for displaying on the screen (option).
- Any window can be moved, sizing, freezing and fullscreened by mouse.
- Ready layout can be saved/restored from/to memory as preset.
- Graphic objects such as logo, clock can be displayed.
- Audio level meters can be displayed (up to 4 channels for one window).
- Images features such as brightness, contrast, saturation and hue can be adjusted .
- Text titles such as source name, current mode, etc. can be displayed.
- Tally function allows to display Program/Preview marks for corresponding sources (option).
- 2 SDI outputs to which inputs can be switched by mouse or GPI signal (option).
- Controlling through USB, Ethernet, RS-422/485.
- 19'' 1U Stand alone device.
- Power 220 V.
- Weight 3 kg.
- ULUSSES Base unit
- 4 x SDI inputs module (4 input each) with Embedded Audio
- 4 DV additional inputs options
- 4 x SDI inputs module (4 input each) with Embedded Audio
- 4 DV additional inputs options
