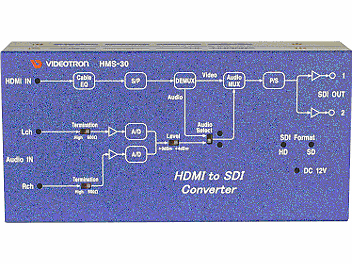

Videotron HMS-30 HDMI to SDI Converter
DISCONTINUED
Rate:
0 ratings
Log in to rate
Already own it? Write a review
The HMS-30 is a device that converts HDMI signal of 1080i and 525i into HD-SDI or SD-SDI signal. It is compact and easy to carry. It allows embedding eight channels audios of HDMI signals or two analog audios into the output SDI signal.
Input signal supports 1080i/59.94 and 525i/59.94 of HDMI v1.1, and automatically switches them.
Built-in cable equalizer at the input section compensates maximum 30m of cable length.
Built-in cable equalizer at the input section compensates maximum 30m of cable length.
Input Signals :
HDMI IN HDMI v1.1, Type A connector
AUDIO IN Lch, Rch 600ohms / 10kohms balanced, XLR-3 (m), Each 1 channel
Output Signals
SDI OUT SMPTE292M, SMPTE259M-C, 0.8 Vp-p+/-10% / 75 ohms, BNC, 2 channels
Video Format 1080i/59.94, 525i/59.94
Operating Temperature 0 to 40 degrees C
Power Supply Terminal DC9-18V, XLR-3(m), 1channel
(#1,2pins: GND, #3,4 pins: DC6-18V)
Dimensions & Weight 150(W) x 75(H) x 40(D)mm, 460g (excluding projections)
Power Consumption 14.4VA (12V,1.2A)
Input characteristics :
Standard Operation Level +4dBm or +0dBm
Maximum Signal Level +24dBm
Frequency Characteristics +4dBm, 0 to +/-1dB @ 20Hz to 20kHz
Output characteristics :
Resolution 8bit
Sampling Frequency HD: 74.18MHz, SD: 13.5MHz
Signal Amplitude 0.8Vp-p +/-10% / 75ohms
Return Loss HD: > 15 dB @ 5 MHz to 742.5 MHz
HD: > 10 dB @ 742.5 MHz to 1.485 GHz
SD: > 15 dB @ 5 MHz to 270 MHz
Rise /Fall time HD: < 270 ps (20% to 80%)
SD: 0.4ns to 1.5ns (20% to 80%)
Overshoot < 10%
DC offset 0V +/-0.5V
Jitter Characteristics
Alignment 0.2UI
Timing HD: 1.0UI, SD:0.2UI, > 15 d
HDMI IN HDMI v1.1, Type A connector
AUDIO IN Lch, Rch 600ohms / 10kohms balanced, XLR-3 (m), Each 1 channel
Output Signals
SDI OUT SMPTE292M, SMPTE259M-C, 0.8 Vp-p+/-10% / 75 ohms, BNC, 2 channels
Video Format 1080i/59.94, 525i/59.94
Operating Temperature 0 to 40 degrees C
Power Supply Terminal DC9-18V, XLR-3(m), 1channel
(#1,2pins: GND, #3,4 pins: DC6-18V)
Dimensions & Weight 150(W) x 75(H) x 40(D)mm, 460g (excluding projections)
Power Consumption 14.4VA (12V,1.2A)
Input characteristics :
Standard Operation Level +4dBm or +0dBm
Maximum Signal Level +24dBm
Frequency Characteristics +4dBm, 0 to +/-1dB @ 20Hz to 20kHz
Output characteristics :
Resolution 8bit
Sampling Frequency HD: 74.18MHz, SD: 13.5MHz
Signal Amplitude 0.8Vp-p +/-10% / 75ohms
Return Loss HD: > 15 dB @ 5 MHz to 742.5 MHz
HD: > 10 dB @ 742.5 MHz to 1.485 GHz
SD: > 15 dB @ 5 MHz to 270 MHz
Rise /Fall time HD: < 270 ps (20% to 80%)
SD: 0.4ns to 1.5ns (20% to 80%)
Overshoot < 10%
DC offset 0V +/-0.5V
Jitter Characteristics
Alignment 0.2UI
Timing HD: 1.0UI, SD:0.2UI, > 15 d
