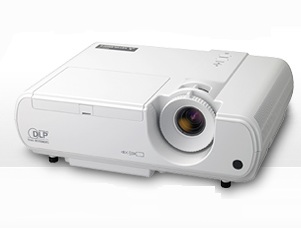

Mitsubishi XD221U DLP Projector

Mitsubishi XD221U DLP Projector
The XD221U DLP projector is a mobile projector with updated XGA projector functions that make it the perfect fit for education.


Anti-theft Security Hook
Superior Color Reproduction
Instant Shutdown
Easy Setup
White Intensity
Wall Screen Support
Closed Caption


Imaging Technology - 0.55" 1-Chip DMD, 12 deg. LVDS, DDP2230
Brightness/Lumens - 2300 ANSI Lumens
Native Resolution - 1024 x 768
Maximum Resolution - 1280 x 1024
Viewable Size - 40"-300" wide
Contrast Ratio - 2000 : 1 (on/off)
Color Wheel - 5-segment (RGBWY)

Lens Throw Ratio - 1.8 - 2.1
Zoom & Focus Adjustment - Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)

Compatible with MAC and PC

NTSC, PAL, SECAM - NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Computer/Video Input Support - RGB: Mini D-sub 15pin x2, Video: RCA x1, S-VIDEO x1, Audio: Stereo mini jack (3.5mm) x2
12V Trigger - N/A
Computer Monitor Loop-Out - Yes
RS-232 Communication Support - Mini DIN 8pin x 1
Audio Speaker - 10W Mono
Audio Out - Variable
USB Mouse Support - N/A

Estimated Lamp Life Rating - 4000 hours (low mode)
Replacement Lamp (VLT-XD221LP)

Noise Level
Decibels - 29dBA (standard mode), 26dBA (low mode)

Power Consumption - 270W
Power Requirements - AC 100-240V, 50/60 Hz

In the Box

Owners manual (CD-ROM)
Quick Guide/Safety Manual
Remote control (w/ 2 batteries)
Power cable
VGA (D-sub) cable
soft carry case
