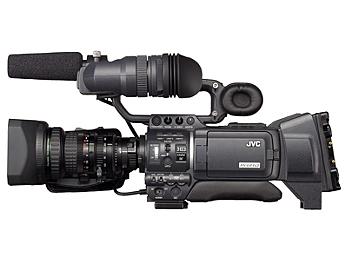

Features
HDV and DV compatible
Real 24p camcorder
Interchangeable HD lenses
3-CCD camera system with 720p HD CCDs
Uncompressed 720p/50, 60 live output via component
Uncompressed 1080i/50, 60 output via component
Multiple progressive frame rate recording: 24p, 25p, 30p, 50p, 60p
Built-in MPEG-2 Super Encoder
Compact shoulder mount Professional functions and switch layout
Detachable 230,000-pixel LCD colour viewfinder
3.5" LCD display panel
Camera settings recorded on SD card
IEEE 1394 (FireWire) in/out(GY-HD200EB output only)
Universal ergonomic design
Patented FOCUS ASSIST function
Connect to optional external HDD for both 720p and 1080i capturing
Specifications
Image pickup device:
1/3" inch interline-transfer CCD
Optical system:
Colour separation system: F1.4, 3-colour separation prism
ND filter: +1/4ND, +1/16ND
No of pixels:
Total: Approx 1.110.000 pixeles
Colour system:
PAL (wide band R-Y, B-Y encoder)
Colour bars: SMPTE HDTV colour bars / EBU colour bars
Sync system:
Internal sync (built-in SSG)
External sync: BB, VBS, signal or HD tri-sync signal
Lens mount:
1/3" bayonet system
Gain:
0, 3, 6, 9, 12, 15, 18 dB, ALC
Shutter speeds:
Electronic Shutter:
Standard value: 50 Hz
Fixed values:
7.5 - 10,000 Hz, 11 steps (HDV HD60p / HDV HD30p)
6.25 - 10,000 Hz, 11 steps (HDV HD50p / HDV HD25p; DV 50i/DV25p mode)
6 - 10,000 Hz, 12 steps (HDV HD24p)
Variable scan:
About 60 to 10,000 Hz (HDV HD60p / HDV HD30p) /
About 50 to 10,000 Hz (HDV HD50p / HDV HD25p; DV 50i/25p mode)
About 24 - 10,000 Hz (HDV 24p)
Dynamic range:
300% or more
Recording formats:
720/24p, 720/25p, 720/30p, 720/50p, 720/60p, 576/25p, 576/50i
Recording system:
Built-in MiniDV recorder.
External optional Hard Disk Recorder DR-HD100E
VIDEO
HDV
Video signal recording format: HDV1 format, 8-bit, 19.7 Mbps
Compression: MPEG-2 video (profile & level: MP@H-14)
Sampling frequencies:
720/60p: 74.25/1.001 MHz (4:2:0 component)
720/50p: 74.25 MHz (4:2:0 component)
1080/60i: 74.25/1.001 MHz (4:2:0 component, cross conversion only)
1080/50i: 74.25 MHz (4:2:0 component, cross conversion only)
DV
Video signal recording format: DV format, 8-bit, 25 Mbps
Compression: DV compression, 4:2:0
AUDIO:
HDV
Audio signal recording format: MPEG1 Audio Layer II
DV
Audio signal recording format: 16-bit (locked audio), 48 kHz PCM for 2 channels or 12-bit, 32 kHz PCM for 4 channels
Usable tape: Mini DV tape
Tape speed: 18.831 mm/sec.
Record/play time: 63 minutes (with an M-DV63PROHD tape)
CONNECTORS
Analogue composite output:
1.0 V (p-p), 75 ohms, unbalanced (RCA)
Analogue component output:
Y: 1.0 V (p-p), 75 ohms, unbalanced (BNC)
R-Y / B-Y: 0.7 V (p-p), 75 ohms, unbalanced (BNC)
Audio input:
Mic: -60 dBs, 3 kohms, balanced (XLR), +48 V output for phantom power supply
Line: +4 dBs, 10 kohms, balanced (XLR)
Audio output:
-8 dBs, low impedance, unbalanced (RCA)
Other:
8 ohm (Minijack stereo x 2)
Terminal IEEE1394: 6 pin
Terminal REMOTE: DIN 6 pin"
Power requirement:
DC 12 V (10.5 - 17V)
Power consumption:
Approx 23W (in record mode)
Operating Temperature:
0oC to 40oC
Storage: -20oC to 60oC
Operating Humidity:
30% to 80% RH
Storage: 85% RH or less
Dimensions:
224mm (W) x 242.3mm (H) x 414mm (D
Weight:
Mass: 3.8 kg (including lens [Th16x5.5BRMU], viewfinder, microphone and tape)
In the Box
Viewfinder
Lens (Th16x5.5BRM)
Microphone
SD memory card
V-wedge tripod adapter (KA-V100)
JVC GY-HD201EB manual
