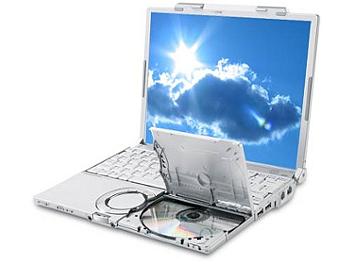

Panasonic CF-W8EWAYZJM Toughbook Notebook

Panasonic CF-W8EWAYZJM Toughbook Notebook
The ultra-portable Toughbook W8 with a 7 hour battery life is designed for the high-output demands of today's mobile professionals. Rugged features, such as a shock-mounted
120GB hard drive and spill-resistant keyboard, ensure maximum durability and industry-leading reliability. Run software applications with the powerful
Intel Core 2 Duo Processor using Intel Centrino 2 with vPro technology, or create multimedia discs on the DVD multi-drive. Genuine Windows Vista Business Genuine -
Windows XP Professional (Downgrade).


Genuine Windows Vista Business
with a 12.1" LCD and integrated optical drive.
Long battery life
Runs for approx. 8 hours*4 on standard battery power.
Passed a 76 cm free fall test *5 and a 100-kgf pressurized vibration test*6.
Spill resistance keyboard*7.
Integrated wireless LAN(IEEE802.11a/b/g), IEEE802.11n (Draft 2.0) and Bluetooth(R).
*WWAN mode is also available.
Super Multi Drive
The cover opens upward, making it possible to insert and remove discs without requiring much space.

Laser printing has improved the durability of the characters printed on the key tops.
Key pitch: 19 mm (horizontal)*8
Key stroke: 2 mm


Mobile Computing Intel Centrino 2 with vPro technology
Platform Intel Core 2 Duo processor SU9300 (1.2GHz, 3MB*1 L2 cache, 800MHz FSB)
Mobile Intel GS45 Express Chipset
Intel Wireless WiFi link 5100 AGN Network Connection (supporting 802.11a/b/g, n draft 2.0 compliant)
OS Genuine Windows Vista Business or
Genuine Windows XP Professional (Downgrade)
RAM 2GB (DDR2-533 SDRAM, 1GB + 1GB))
Graphic Chip Intel GS45 graphics controller; UMA (max. 384MB with Windows XP)
HDD 120GB (SATA, shock resistant and easy accessible)
Optical Disc Drive DVD Multi Drive
LCD 12.1" anti-glare Active Matrix (TFT) colour LCD (flexibly mounted)
1024x768 pixel (XGA), 16 million colours
LCD Cabinet Magnesium alloy (withstands pressure of up to 100kgf)
Bluetooth Version 2.0 + EDR (Class 1); slide on/off switch
WLAN IEEE 802.11a/b/g, n draft 2.0 compliant (max. 54Mbps); slide on/off switch
LAN IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Modem Data: 56kbps (V.92), FAX: 14.4kbps
Sound Analog Devices AD1883 compliant audio codec (24bit stereo, conforms to Intel High Definition Audio)
Monaural speaker
Input Devices Touchpad and Keyboard (both water resistant)
Indicators 9 LEDs (Power, ECO, Battery, HDD, Caps Lock, Scroll Lock, Num Lock, SD card, Disc)
Interfaces External display (VGA port): Mini Dsub, 15-pin
Headphone: Mini-jack, 3.5 DIA, stereo
Microphone: Mini-jack, 3.5 DIA, stereo
DC In: Jack
USB 2.0: 3x 4-pin
Modem: RJ-11
LAN: RJ-45
Mini Port Replicator: 50-pin
Expansion Slots PC Card: 1x Type I or Type II (3.3V: 400mA, 5V: 400mA)
SD/SDHC Memory Card: 1x
Power Power Consumption: Approx. 30W/max. 60W (maximum when recharging)
AC Adaptor: Input: 100-240V AC, 50Hz/60Hz; Output: 16V DC, 3.75A
Battery: Li-ion (10.8V, 5.8Ah)
Battery life: Approx. 8h (Mobile Mark 2007, 60cd/m2, Vista Model, Economy Mode
(ECO) disabled)
Charging time: Power off: approx. 5h; power on: approx. 6.5h
Power Management Suspend/Resume Function, Hibernation, Standby, ACPI BIOS, Economy mode
Software Microsoft Internet Explorer / DirectX / Microsoft Windows Media Player / Microsoft Windows Movie Maker /
Microsoft .NET Framework / Adobe Reader / Loupe Utility / Touch Pad Utility / PC Information Viewer / PC Information
Popup / WinDVD 8 (OEM Version) / Roxio Creator LJB / Hotkey Settings / Optical Disc Drive Letter-Setting Utility /
Intel Matrix Storage Manager / Wireless Switch Utility / Wireless Connection Disable Utility / Bluetooth Stack for
Windows by TOSHIBA / Battery Recalibration Utility / Infineon TPM Professional Package V3.0 SP2HF2, Setup Utility /
Hard Disk Data Erase Utility / PC-Diagnostic Utility
Security Features TPM (Trusted Platform Module, TCG V1.2 compliant)
Password security (supervisor password, user password, hard disk lock)
Integrated hardware security lock slot
