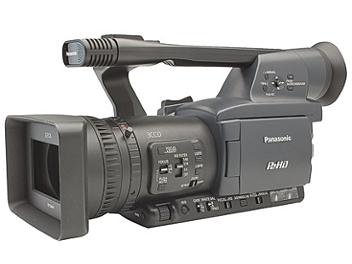

Panasonic AG-HPX175 DVCPRO HD Camcorder NTSC

Panasonic AG-HPX175 DVCPRO HD Camcorder NTSC
The AG-HPX175 is an ultra-mobile P2 HD handheld camcorder featuring full, 4:2:2 independent frame production quality HD and solid-state recording.

See also: Panasonic AJ-PX270 P2 HD Camcorder


Power supply : DC7.2V(using with battery), DC7.9V(with AC Adaptor)
Power Consumption : 11.7W (when using Monitor), 10.9W
Operation temperature : 0oC to 40oC
Pick-up Device: 3CCD (1/3-inch interline transfer type, and progressive modes supported)
Lens: LEICA DICOMAR lens with optical image stabilizer, motorized/manual mode switching,
F1.6-3.0 f=3.9mm to 51mm/35mm equivalent: 28mm to 368mm)
Optical Color Separation: Prism system
ND Filter: 1/4, 1/16, 1/64
Gain Selection:
60i/60p mode: 0/+3/+6/+9/+12/+18 dB,
(0dB fixed in slow shutter mode)
30p/24p mode: 0/+3/+6/+9/+12 dB,
(0dB fixed in slow shutter mode)
Shutter Speed: 60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
(Preset) 30p mode: 1/30, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
24p mode: 1/24, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec
Shutter Speed: 60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec.
(Synchro Scan)24p mode: 1/24.0 sec. to 1/249.8 sec.
Slow Shutter Speed: 60i/60p mode: 1/15, 1/30 sec. 30p mode: 1/15 sec. 24p mode : 1/12 sec.(720p mode only)
Filter Diameter: 72mm
with Lens hood
Recording Format:
1080/60i(30p over 60i, 24p over 60i, 24pA over 60i)
720/60p(30p over 60p, 24p over 60p)
720/30pN(Native recording)
720/24pN(Native recording)
480/60i(30p over 60i, 24p over 60i, 24pA over 60i)
PCM Digital Recording 48kHz, 16bit
4ch(DVCPRO HD/DVCPRO50) 2/4ch swiching
Recording time : 64 min.(using P2 card 64GB on DVCPRO HD 4ch)
Video system :
SDI Output BNCx1, 0.8Vp-p, 75 Omh
HD: SMPTE 292M/296M/299M
SD: SMPTE 259M-C/272M-A/ITU-R.BT656-4
Component Output :1.0Vp-p, 75 Omh PB/PR:0.7Vp-p, 75 Omh, Component video terminal x1 pc.
Composit Output : Pinjack x 1, 1.0Vp-p, 75 Omh
Audio IN/OUT
XLR Input: XLR (3 pins) x 2 (INPUT1, INPUT2), High impedance
LINE: 0 dBu, MIC: -50 dBu/-60 dBu (selectable in menu)
LINE input/output: Pin jack x 2(ch1, Ch2), 600 Omh 316mV
Internal Microphone: Stereo microphone
Headphone: Stereo mini jack (3.5 mm diameter) x 1
Built-in Speaker: 20 mm (round) x 1
Digital Interface : 1394 input/output (IEEE1394, 6 pin)
USB : USB2.0, USB terminal Type MiniB connector
Camera Remote : 2.5mm super mini jack x 1(Zoom,Start/Stop), 3.5mm minijack(focus,IRIS)
Monitor : 3.5inch, LCD color Monitor, 210,000 pixels
View finder : 0.44inches, LCD color Monitor, 235,000 pixcel

In the Box

AC adapter/charger
5400mAh battery pack
AC cord
DC cord
Wireless remote controller with button-type battery
Microphone holder, Adaptor,
Eye cup
Shoulder Belt
Component video cable
Ferrite core
