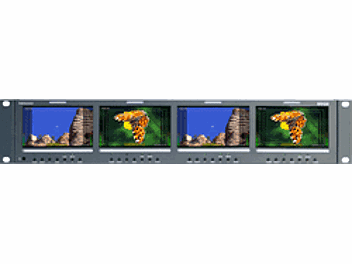

Osee RMS-3542-SC 4 x 3.5-inch LCD Monitor

by Osee
Osee RMS-3542-SC 4 x 3.5-inch LCD Monitor
The Osee RMS-3542-SC supports SD-SDI, Analog Composite signals.

The RMS/RMD3542 is a 2U high rack mountable LCD monitor that offers video and audio monitoring with high resolution of 640x480. The unit is equipped with full digital processing technology, and its screens feature anti-glare. The model accepts HD-SDI, SD-SDI and analog composite signal. A high display quality of all video signals can be ensured by full digital processing. The precise scaling chip as well as Gamma correction is a guarantee fro high quality display image.



Number of Screens: 4
Display (Viewing Area): 3.5" diagonal (2.83"H x 2.07"V) (72.0mm x 52.56mm)
Viewing Angles: 100oH x 50o V
Screen Colors (Bit Depth): 262,000 (18 Bit)
Resolution (Dots): 640H x 480V (921,600 pixels RGB)
Dot Pitch: 0.1125 mm (W) x 0.1095mm (H)
Contrast Ratio: 350 :1
Pixel Response: <30ms typical
Dimensions: 19"W x 3.5"H x 2.2"D (486 x 88.9 x 56mm)
Power Consumption: 12VDC/10 watts. - (3.8 Amps max CE & UL complied supply included)
Operating Temperature: 0o C to 60o C
System: NTSC/PAL auto recognition
Inputs: SD-SDI/ Analog Composite (BNC)
Active Outputs: SD-SDI re-clocked output (BNC)
