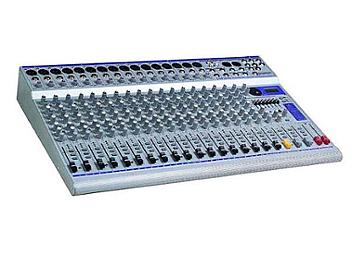

Naphon DSP2022 Audio Mixer


Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio;
Ultra-wide 60db gain range;
Lowest possible distortion 0.0007%(20HZ-20KHZ);
Integrated 24 bit digital stereo DSP processor with 32 Preset including reverb, delay,
chorus, tube distortion, channel for easy to use along applications;
7 band stereo graphic EQ allow precise frequency correction of monitor or main mixer;
2 fully equipped stereo input channels, 3 band EQ AND MID Frequency control;
Inserts on each MONO channel for flexible connection of outboard equipment high
headroom line input;
3 Aux send per channel:1 pre/post fader for monitoring,1 post fader for external send,
1 post fader for DSP processor;
Clip indication and gain level set LED plus mute switches for each channel allow fast
and accurate level setting;
Two sub buses and output direct or mix to main buses;
2 multi-functional stereo aux returns;
Balanced main mix output with gold-plated XLR Connectors, headphone/control room
output and stereo tape outputs;
Extremely rugged steel construction ensures long life even under most demanding conditions;
Switchable +48V phantom power for condenser microphone;
Long-wearing 60mm logarithmic-taper faders and sealed rotary controls;
Response plus lowest possible power consumption for energy saving.


Mono Input Channels Balance MIC or Line Input
Stereo Input Channels Balance or Unbalance Stereo Line Input
Frequency Response 10Hz~30KHz +/-3db 20Hz~20KHz +/-0.5db
MIC Sensitivity(22Hz-22KHz) -129.5db, 150 Ohm Source; -132db, Input Short Circuit
Gain Adjustable Range +10db~+60db
Line Input Range -40db~+10db
SNR More than or equal to 113db
THD Less than or equal to 0.01%(+4db, 1KHz)
EQ HF:12KHz+/-15db MF:5KHz+/-15db LF:80Hz+/-15db
Max Input +22db
Max Output +22db Balance, +16db Unbalance
Effector 24bit DSP, Multi-effect Processor, 48KHz Sampling Frequency, 32 effect modes memory, LCD display
Phantom Power 48VDC
Power Supply AC100~120V/200~240V 50/60Hz
Dimension: 75.50x44.50x15.50CM
