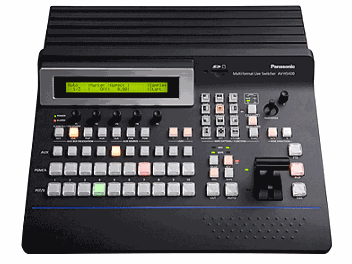

Panasonic AV-HS400N HD/SD Switcher

Panasonic AV-HS400N HD/SD Switcher


Works with PAL and NTSC
Compact design, wide variety of input/output signals
Multiple formats supported
Multi view display function
Frame synchronizer system and external synchronization system supported
Many different effect functions incorporated
SD memory cards supported
Simple operations



8 video input lines (maximum)
4 standard video input lines: SDI inputs x4

Maximum of an additional 4 video input lines as options:
SDI inputs x2, analog (HD/SD) inputs x2, DVI inputs x2
Up to two circuit boards from among the various optional input boards
(incorporating two up-converter lines) can be additionally connected.

Reference x1


7 video signal lines (maximum)
3 standard video output lines (SDI):
PGM outputs x2, OUTPUT1 output x1, OUTPUT2 output x1

Maximum of an additional 4 video output lines as options:
OUTPUT3 to 6 x1 output

Up to two circuit boards from among the analog (HD/SD) x2, DVI x1 and analog x1
output boards can be additionally connected.

Reference x1

Signal formats:
SD: 480/59.94i, 576/50i
HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

Signal processing:
Y:Cb:Cr 4: 2: 2, 10 bit
RGB 4:4:4, 8 bit

ME number : 1ME

Ambient operating temperature : 32 oF to 104 oF (0 oC to 40 oC)
Humidity : 10 % to 90 % (no condensation)
Power supply : AC100V - 120V, 50/60Hz
Power consumption : 98 W

In the Box

Panasonic AV-HS400N Manual
Operating instructions (CD-ROM)
Power Cord


Reviewed by 1 Customers
Rating: 5.0
Great mixer
Rating: 5.0
By from Brisbane on
Great mixer. Used it recently for an awards night. Had 2 x DVI-I/component INPUT cards and 2 x DVI-I/component OUTPUT cards. Used with 3 x cameras (SDI input) and 1 x MacBook Pro (DVI-I input). Nice MultiView output through DVI-I or SDI. Once you set it all up, you're right to go. Nice output. Great all around mixer and a nice way to handle a mix of digital and analogue inputs on a budget.
