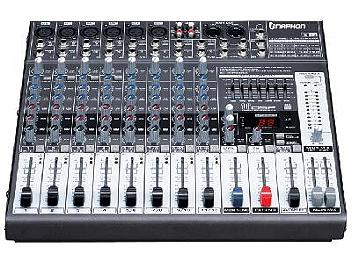

Naphon E12 Audio Mixer

by Naphon
Naphon E12 Audio Mixer


48V Phantom Power
With build in pre-amplifier for Mic,Insert,
4Mono Channel,4stereo Channel with 2 Aux return and send
3band EQ for each channel
all mono channel with lowcut
Feedback 7band stereo graphic EQ
Ruduce noice function for karaoke
16DSP effector digital display
2 groups 3 color 10 band level display
Dual 7 band master control EQ


Channel MIC/Line 12ch
THD Less or equal to 0.05%
Frequency Response 5Hz-50KHz +/-3db
S/N Ratio 103dB
Max Output 4V Max
Input Sensitivity Mic-60db; Line-40db; Aux in-40db; Effect-40db; Tape in-40db
Input EQ HI:+/-15db/12KHz; MID:+/-15db/250Hz-6KHz; LOW: +/-15db/60Hz;
Phantom Power 48V
Effector 16 kinds of anolog DSP
Power Consumption 30W
Dimensions: 420 x 430 x 170mm
G.W.: 9.00kgs
