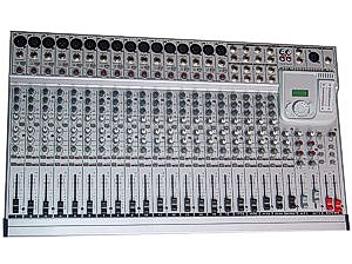

24ch Audio Mixer, DSP Effects
2sub, 48V Phantom Power

Features

16Mic & Mono Channels Input
4 Group Stereo Input
Each Input Channel with 3 Band EQ
2 Group Stereo AUX Output
2 Alt Control Output
1 Group Monitor Output
48V Phantom Power
With 12 V DJ Lamp
LCD Display Screen
With 24 BIT at 48Khz Multi Processor
Dimensions: 83.5 x 49 x 18 cm
Gross weight: 19.5 kg

Specifications

Mono Input Channels
Balance MIC or Line Input

Stereo Input Channels
Balance or Unbalance Stereo Lline Input

Frequency Response
10Hz~60KHz +/-3db 20Hz~20KHz +/-0.5db

MIC Sensitivity (22Hz-22KHz)
-129.5db, 150 Ohm Source; -132db, Input Short Circuit

Gain Adjustable Range
+10db~+60db

Line Input Range
-40db~+20db

SNR
more than or equal to 105db

THD
less than or equal to 0.01%(+4db, 1KHz)

EQ
HF:12KHz+/-15db MF:2.5KHz+/-15db LF:80Hz+/-15db

Max Input
+22db

Max Output
+22db Balance, +16db Unbalance

Effector
24-bit DSP, Multi-effect Processor, 48KHz Sampling Frequency,
14 Effect Modes, more than 100 Kinds of Varieties, Parameter
Memory, LCD Display

Phantom Power
48VDC

DJ Lamp
12VDC, 400MA

Cross Talk
less than -90db

Power Supply
AC100~120V/200~240V 50/60Hz

Power Consumption
less than 30W
