BeachTek DXA-10 Microphone Preamplifier

BeachTek DXA-10 Microphone Preamplifier

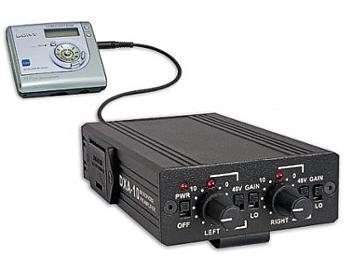

The DXA-10 is a two channel, battery-powered microphone preamplifier with built-in phantom power.


Two balanced XLR microphone inputs
Two line level RCA outputs
Mic level stereo mini-jack output
Dual low noise preamps with +/- 15 volt rails for plenty of headroom
High / Low gain settings for dynamic and condenser type microphones
20 Hz to 20 kHz audio bandwidth
Dual switchable 48 volt phantom power for condenser microphones
Easily replaceable 9 volt battery
LED battery indicator
Removable belt clip for easy portability
Sturdy extruded aluminum chassis
Superb sound


Switchable: HI (60 dB); LO (30 dB)

Frequency Response:
20 Hz to 20 KHz, -1 dB

THD + N:
less than 0.03 @ 1 kHZ

Signal-To-Noise Ration:
66db @ 1 kHZ, +4 dBu output

Maximum output level:
+18 dBu (RCA output)
-37 dBu (MIC output)

Phantom Power:
Dual regulated 48 volt power supplies
Current to 14 mA (direct short)

Battery type / duration:
One standard 9 volt alkaline battery
4 hours typical (no phantom)

Current draw: 120 mA (no phantom)

Case: Powder coated aluminum

Dimensions: 5.25" L x 3.5" W x 1.25" H

Weight: 14 oz.
