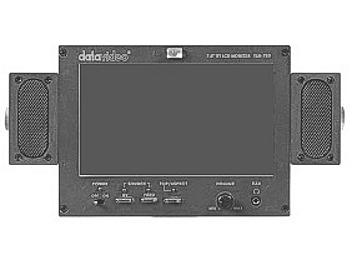

Datavideo TLM-70D 7-inch LCD Monitors

DISCONTINUED
Datavideo TLM-70D 7-inch LCD Monitors
DV input/bypass, 16:9 - 4:3 switchable,
audio monitoring, picture flip and tally monitoring.

Specifications

LCD Display : 7" TFT LCD, active matrix
Aspect Ratio : 4:3 and 16:9 selectable
Resolution : 1440x234 pixels
Brightness : 500 cd/mx2
Contrast Ratio : 300
View Angle - Top: 40 deg, Bottom: 60 deg, Left: 60 deg, Right: 60 deg
Video Inputs :
Composite input 1.0Vp-p, with self loop-through output 75ohm-terminated
DV input, support DV25 NTSC 4:1:1, PAL 4:2:0
Additional analog RGB input for SDI format Converter
Video System : NTSC/PAL auto recognition
Color Adjustments : Brightness, Contrast, Color, Tint
Audio Inputs : Stereo audio input RCAx2
Audio Output : Stereo audio bypass output 2 x RCA
Detachable stereo audio speaker L/R
Tally Indication : Three-way Tally LED indicators
Operation Condition : Operation temperature from 0oC to 50oC, RH less than 90%.
Power Consumption : DC12V/20W (10.8 to 13.2 volts)
