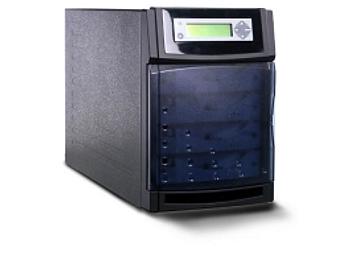

IEI EvoStor 400CA SCSI RAID Direct Attached Storage

by IEI
IEI EvoStor 400CA SCSI RAID Direct Attached Storage
RAID system converts an externally-connected Ultra160 SCSI device into an ATA RAID
4 hot-swappable UltraATA 133drive bays (up to 1.2Tb)

The EvoStor 400CA provides a low setup cost and high-level RAID solution, and supports RAID levels 0, 1, 3 and 5, and hot swapping and hot spare capabilities. The most significant benefit is the combination of the extensibility of SCSI that allows chaining of up to 15 RAIDS, providing corporations the flexibility in future expansions and the lower costs of ATA drive. This is also the ideal choice for environments requiring the use of alternative OSs, and the EvoStor 400CA offers easy storage setup and management which provides a low-cost, high-performance and stable solution that is suitable for small-medium businesses, multimedia, departmental storage, SOHO, software development and system integration.


RAID Engine: Intel 80321 64-bit, 600MHZ RISC IOP
Cache Support: 128 Mbytes up to 1G DDR SDRAM with ECC
RAID Levels: 0, 1, 0+1, 3, 5, NRAID
Stripe Size: 4K, 8K, 16K, 32K, 64K, 128K
Multiple LUNs Support: Yes (Up to 7)
Host Interface Chipset: LSI 53C1000R Ultra160 SCSI controller
Host Transfer Rate: Up to 160 MB/s
SCSI ID Assignment: 0-15, Software Configuration
Disk Interface: UDMA 133
Disk Interface Chipset: HPT 374 4-Channel IDE Controller
Disk Channel: 4 Hot-swappable IDE
Large LBA Support: Yes
LCD Display: 2 lines by 16 characters
LCD Button: Function, Up, Down, Esc and Enter
Hot Swap and Redundant: Yes (Power Supply, Drive)
Hot Spare: Yes (Drive)
Automatic Drive Rebuild: Yes
Audible Alarm: Build-in Buzzer
Array Management Support: Yes (LCD, GUI and ActiveX)
In-Band SCSI Management Support: Yes
Remote Management: Yes (GUI and ActiveX)
Software Integration Component: ActiveX support
Operation System: OS Independent and Transparent
Power Management: ATX Power, 90-264V
Temperature: 0~45oC
Relative Humidity: 0~95% R.H
Dimensions: 380(D) x168 (W) x240 (H) mm
Net Weight: 10KG
Gross Weight: 14KG
Form Factor: Desktop Tower
