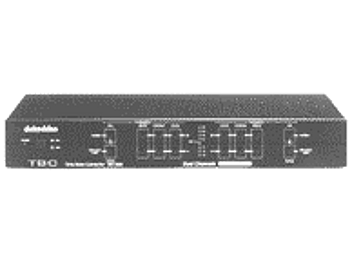

Dual channel time base corrector with chroma key.

Features

Dual Channel Frame synchronization with full frame memory.
16 Color Chroma Keying and level calibration.
Three input to two output matrix switcher.
Dual Channel Color bar pattern generator.
Dual channel digital color processor.
Freeze frame feature.
Wide bandwidth, 8-bit video resolution.
Y.U.V. 4:2:2 sampling rate.

Specifications

Inputs
3 (1+2+3) Y/C in: 4-pin 75 ohm DIN Connectors
3 (1+2+3) Composite (RCA) Video 75 ohm RCA Connectors,
Level: 1.0 VP-P

Outputs
2 (1+2) Y/C out: 4-pin 75 ohm DIN Connectors
2 (1+2) Composite (RCA) Video 75 ohm RCA Connectors,
Level: 1.0 VP-P

Controls
Brightness +/-10%
Contrast +/-3dB
Color +/-3dB
Frequency Response 4.5 MHz +/-3dB
DG, DP +/-2%, 1o
S/N Ratio > 50 dB
Chroma Key Color 16 Colors
Chroma Key Level 15 Steps

Processing
Still - Field
Component - 8-bit, 4:2:2; Y: 13.5 MHz
Correction Range - Two Channel Full Frame TBC
Pattern Generator - Color Bar Pattern

General
Power 9 VDC 12W (AC adapter included)
Temperature 0o-55oC
Humidity <90%

Dimensions
Width: 420 mm
Depth: 240 mm
Height: 60mm
Weight: 3.7 Kg

Supplied Accessories
Y/C (S-Video) Cable
Composite (RCA) Cable
Rack mount brackets
