IEI NAS-4300S A/V Network Server

by IEI
IEI NAS-4300S A/V Network Server
A/V Network Server, up to 2 TB capacity.
Embedded software.
16-port layer 2 switch (10/100) with dual Gigabit Ethernet LAN ports.


3U Rack-mount with maximum capacity up to 2 TB
8 Hot Swappable HDD's and 3 Hot Swappable/Hot Spare ATX power supplies (supplied without disks)
Supports RAID 0, 1, 5+ Hot Spare data protection plus JBOD Disk Management
Cross-platform file server/FTP server
2 Gigabit ethernet LAN ports
Supports external SCSI tape backup
Supports UPS power management
Remote data access / system management
16-port 10/100m switch


News Digital Centers

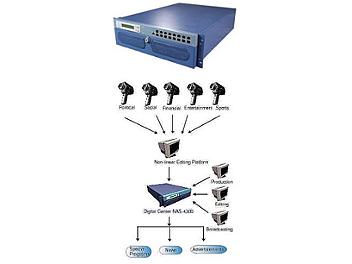

New Vision Television has 5 teams responsible for gathering information on various kinds of events such as political, social, financial, entertainment and sports news. Each journalist has to edit and compile the contents of his/her article through a non-linear editing platform and save it to digital centers either for broadcasting during the day or for using in a future program production. However, large multimedia files require extremely high levels of storage capacity. How to ensure data availability and maintain platform performance in the mean time has become a critical issue.

The recent installation of IEI's NAS-4300, equipped with a powerful P4-2.4GHz processor and 512 MB of cache RAM, as well as dual Gigabit Ethernet ports and a high storage capacity of up to 2TB, ensured that New Vision's needs were completely covered. In addition, with remote replication, tape backup and UPS support, the NAS-4300 provides stability and performance coupled with user features that are usually only found on the most high-end (and expensive) NAS products. IEI's NAS-4300 not only brings down the cost per GB but also serves as one of the most reliable and flexible storage solutions for New Vision Television.


Processor Intel P4 2.4 GHz
Flash Memory 32MB
HDD 8 x 3.5" IDE HDD

Other I/O
SCSI Ultra 160 Interface supports LVD SCSI Ultra 160 tape backup
RS232 Interface supports UPS Power Management

System Information
LED Indicator: Power, Error, Network Status, HDD
LCD Display: LCD High Brightness Panel, Two Control Buttons for System Management
Alarm Buzzer: System Malfunction Warnings

Network Specification
Network Standards
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX Fast Ethernet
IEEE802.3ab1000Base-T Gigabit Ethernet
IEEE802.3x Flow Control
ANSI/IEEE 802.3 Nway Auto-negotiation
Gigabit Ethernet
2 x 10/100/1000Mbps Auto-Sensing Ethernet Ports (RJ-45 Interface)
LAN Ports
16 x 10/100Mbps Auto-Sensing Gigabit Ethernet Port (Only for NAS-4300S)

Physical Specifications
Form Factor: 3U Rack-mount
Dimension: 592(D) x 430(W) x 131(H) mm
Weight: 22kg

Operating Environment
Temperature: 0~45oC
Humidity: 0~95% R.H

Agency Certifications

Power Management
3 x Redundant / Hot Swap Power Supply
ATX Power, 90~264V
