A simple solution for transferring video and audio back and
forth between analog tape and DV.

Features

Selectable video standard:
NTSC (525 lines /60Hz), PAL (625 lines /50Hz).

Inputs: DV, Y/C, Composite

Outputs: DV, Y/C, Composite

Two 6-pin FireWire (iLink) I/O ports, Available in
NTSC 4:1:1 or PAL 4:2:0 DV25 format
(25Mbps data transfer rate)

Selectable Video level, at 0 IRE or 7.5 IRE

Video Comb Filter for High Quality Video

Video input source auto-detection

Audio Sampling Rate:
Selectable 32KHz (12-bit) or 48 KHz
(16-bit) for unbalanced audio.

Audio Decoding Rate:
Selectable 32KHz, 44.1KHz or 48KHz
DV audio decoding

Formats:
DV (iLink), Digital 8, Video 8, Hi8, VHS,
S-VHS, VHS-C and S-VHS-C, U-Matic, etc.

Computers:
PowerMac, iMac, Windows 98/ME/2000 and XP

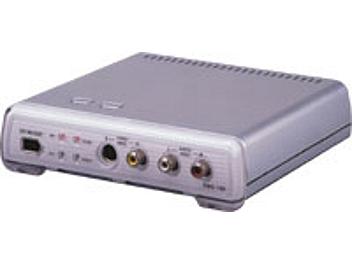

Front Panel

Digital Video Input:

Two 6-pin FireWire (iLink) I/O ports. Available in
NTSC 4:1:1 or PAL 4:2:0, DV25 format
(25Mbps data transfer rate)

Analog Video Input:

Y/C (S video) (DIN 4-pin 75 ohm)
Y: 1.0Vp-p, C: 0.627mVp-p

Composite (RCA 75 ohm) 1.0Vp-p

Analog Audio Output:

Unbalanced Audio RCA x 2

LED Indicators:
Video input source: AV or DV
Digital audio sample rate:
32KHz/12-bit or 48KHz/16-bit.

Rear Panel

Digital Video Output:

Two 6-pin FireWire (iLink) I/O ports.
Available in NTSC 4:1:1 or PAL 4:2:0, DV25 format

(25Mbps data transfer rate)

Analog Video Output:

Y/C (S video) (DIN 4-pin 75 ohm) Y: 1.0Vp-p, C: 0.627mVp-p

Composite (RCA 75 ohm) 1.0Vp-p
Analog Audio Output:

Unbalanced Audio RCA x 2

Dip Switch Settings:

S1. PAL or NTSC system
S2. 7.5 IRE / 0 IRE
S3. Auto / Manual (Video input detection)
S4. Win2K / Normal mode
