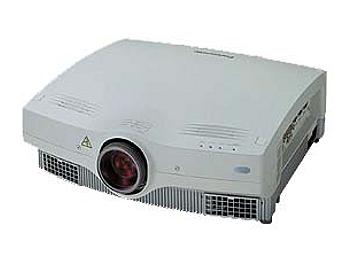

Panasonic PTL-L6600 LCD Projector SXGA 3600

DISCONTINUED
Panasonic PTL-L6600 LCD Projector SXGA 3600
NEW BRITEOPTIC(TM) DUAL LAMP SYSTEM OFFERS BRIGHTNESS OF 3600 ANSI LUMENS

Panasonic's PT-L6500E and PT-L6600E LCD projectors incorporate our highly acclaimed BriteOptic Dual Lamp system, which delivers high-definition images with superb brightness.

Specifically designed with extensive user input, we began by making key improvements to the system engine, then devised a symmetrical design that places the lens directly in the unit's centre, for easier positioning.



We also incorporated the latest DSP technology that assures precise, consistent performance.



The result: a series of projectors that deliver ultra-bright, beautiful images while greatly improving setup and maintenance ease.



See how brilliant your presentations look when delivered through a Panasonic PT-L6500E/L6600E projector.



ULTRAHIGH BRIGHTNESS AND CONTRAST



Panasonic's advanced BriteOptic (TM) Dual Lamp System delivers both 3600 ANSI lumens of brightness and superior colour reproducibility.



A corrective film is used to compensate for phase shifts in the light incident to the LCD panel, helping obtain a high contrast ratio. The result is reproduction of crisp, clear, super-bright images with outstanding depth.



HIGH RESOLUTION & INTELLIGENT IMAGE RESIZING



The PT-L6500E gives true XGA resolution (UXGA max), the PT-L6600E offers SXGA resolution (UXGA max) allowing display of detailed computer graphics and text. When displaying images of other types, the signals are expanded or compressed through digital processing system.



This assures smooth outlines and outstanding picture definition with all types of images.



FLEXIBLE CONNECTION



The PT-L6500E/L6600E is equipped with a digital video interface (DVI), which lets you connect with PCs for full digital image signals from digital TV and DVD sources.



INSTALLATION OPTIONS



Two ceiling mount brackets are available, one for high ceilings and one for lower ceilings. A bracket and a simpler stacking mount are also available, for quick, easy, temporary stacking of two units.



EASY SETUP AND MAINTENANCE



The PT-L6500E and L6600E feature a symmetrical design that places the lens right at the centre , making it easier to position the projector and screen. Maintenance is easier too, thanks to a design that lets you replace a lamp without removing the projector from the bracket in either ceiling-mounted or dual stacking configuration.



A HOST OF USES



The PT-L6500 and the L6600E provide the quality and performance needed in almost any application. Use them in meeting rooms, theatres, museums, convention halls, public spaces, schools, research labs - anyplace where bright, beautiful images are a plus. Also the superb resolution made possible by digital RGB input delivers images with exceptional detail and accuracy. This makes the PT-L6600E and the L6500E suitable for use as mains systems for monitoring traffic or electric power, or in operation centres such as police, fire, air traffic control, and space development centres.



ONE-TOUCH AUTO SETUP



This function automatically identifies the signal mode of the input source and adjusts the image accordingly. You get optimal viewing quality, with no additional software, equipment or manual adjustment necessary.



LENS SHIFT



Shift the projected image vertically even after the projector is set in position. The PT-L6500E/L6600E has a great adjustment range, and the image remains distortion free.



INCREASED RELIABILITY



These projectors have a long lamp life of 3000 hours (at dual lamp operation). With BriteOptic (TM) Dual lamp System, even if one lamp burns out, the remaining lamp provides sufficient brightness. This offers you the peace of mind that comes with the reliability of virtual-zero downtime.



OTHER FEATURES



- Digital Zoom: Portions of the image can be enlarged to 3x in steps of 0.1x

- Freeze Frame: Moving pictures can be frozen at any time and projected as still pictures

- Exhaust duct with noise cancel system achieves quiet 36-dB operation (with lamp power at Normal)

- LCD panels with micro lens array (MLA) for extra brightness (for the PT-L6600Eonly)

- Centre-to-corner uniformity ratio (CCR) of over 85%

- Wireless remote with mouse control

- Lightweight and durable magnesium-alloy cabinet

- Power Zoom/focus lens capable of projecting a 40'' to 300'' diagonal image

- Ceiling/desk, front/rear projection capable

- RS-232C computer interface and contact closure remote terminal

- S-Video compatibility

- Motorized retractable lens for lens protection

- Selectable 7-language on screen menu (English, German, French, Spanish, Italian, Chinese, Japanese)

- Indicators for lamp errors, thermal warnings and suggested replacement

- Universal AC power supply (auto-voltage: 100-120V/220-240V)

- Built-in stereo amplifier and speakers (2W+2W) for true multimedia applications
