VideoSolutions ULUSSES SDI16 Multiviewer
Availability:
In Stock
Price: $4,260.00

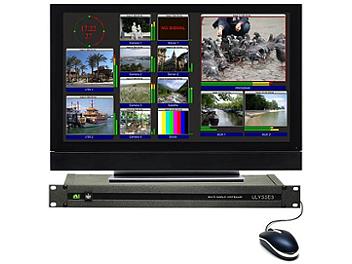

shown with optional TV
VideoSolutions ULUSSES SDI 16 Multiviewer
Allows to control the colored video images from 16 video signal sources in real time on Full HD monitors. Can be used instead of monitors walls in broadcast TV stations, in cable TV stations, in OBVans, security video systems, etc.
Application:
* TV-channel Master Control
* Satellite TV apparatus rooms
* Cable network apparatus rooms
* IPTV network apparatus rooms
* Studio apparatus rooms
* Mobile TV stations
* Control centres
* Sport competitions
* Concerts, mass events
VideoSolutions ULUSSES SDI 16 Multiviewer
Allows to control the colored video images from 16 video signal sources in real time on Full HD monitors. Can be used instead of monitors walls in broadcast TV stations, in cable TV stations, in OBVans, security video systems, etc.
Application:
* TV-channel Master Control
* Satellite TV apparatus rooms
* Cable network apparatus rooms
* IPTV network apparatus rooms
* Studio apparatus rooms
* Mobile TV stations
* Control centres
* Sport competitions
* Concerts, mass events
- The simultaneous viewing of 16 SDI videosignal sources
- Available inputs configurations: composite (PAL/NTSC) or SDI or composite/SDI which can be reassigned in the menu, SDI with embedded audio, balanced audio -all of them are different cards (modules).
This device has modular construction, where each module has 4 inputs of the same type.
This allows to build different inputs configurations. For example: 8 SDI (2 modules) and 4 composite inputs (1 module)
The maximum modules number is 4, so that the maximum inputs number is 4x4=16.
- Any window can be moved, sizing, freezing and fullscreened by mouse.
- Ready layout can be saved/restored from/to memory as preset.
- Graphic objects such as logo, clock can be displayed.
- Audio level meters can be displayed (up to 4 channels for one window)(optpon)
- Images features such as brightness, contrast, saturation and hue can be adjusted .
- Text titles such as source name, current mode, etc. can be displayed.
- Tally function allows to display Program/Preview marks for corresponding sources (option).
- 2 SDI outputs to which inputs can be switched by mouse or GPI signal (option).
- Controlling through USB, Ethernet, RS-422/485.
- 19'' 1U Stand alone device.
- Power 220 V.
- Weight 3 kg.
- Available inputs configurations: composite (PAL/NTSC) or SDI or composite/SDI which can be reassigned in the menu, SDI with embedded audio, balanced audio -all of them are different cards (modules).
This device has modular construction, where each module has 4 inputs of the same type.
This allows to build different inputs configurations. For example: 8 SDI (2 modules) and 4 composite inputs (1 module)
The maximum modules number is 4, so that the maximum inputs number is 4x4=16.
- Any window can be moved, sizing, freezing and fullscreened by mouse.
- Ready layout can be saved/restored from/to memory as preset.
- Graphic objects such as logo, clock can be displayed.
- Audio level meters can be displayed (up to 4 channels for one window)(optpon)
- Images features such as brightness, contrast, saturation and hue can be adjusted .
- Text titles such as source name, current mode, etc. can be displayed.
- Tally function allows to display Program/Preview marks for corresponding sources (option).
- 2 SDI outputs to which inputs can be switched by mouse or GPI signal (option).
- Controlling through USB, Ethernet, RS-422/485.
- 19'' 1U Stand alone device.
- Power 220 V.
- Weight 3 kg.
- 4 x SDI inputs module (component, 10bit,270mbt/s), according to SMPTI-259M
- 19'' 1U Stand alone device.
- Power consumption: 10 W
- Power 90- 260 V 50/60hz.
- Weight 3,5 kg.
- 19'' 1U Stand alone device.
- Power consumption: 10 W
- Power 90- 260 V 50/60hz.
- Weight 3,5 kg.
|
