VideoSolutions DV-SDI Converter PAL with Audio
Rate:
0 ratings
Log in to rate
Already own it? Write a review
DV to SDI Converter (with audio).
The converter was designed for using in pro- and consumer TV-complex configurations. It guaranteers qualitative DV to SDI convertion.
The converter was designed for using in pro- and consumer TV-complex configurations. It guaranteers qualitative DV to SDI convertion.
It can be used for:
- integration DV sources in complex configuration, using SDI signal interface
- prolongation of DV-sources connections;
- computer-studio devices connection and so on.

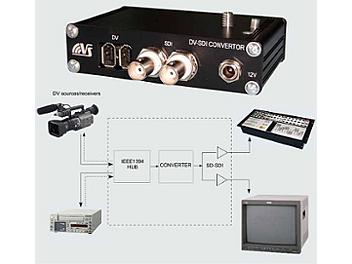

DV sources connection is realized through two 6-pin sockets of the same value. Further connections are provided through two buffered SDI (BNC) outputs of the same value. Power supply is realized through any of DV sockets or from the external 5-25 V, 250 mA source. This device can be mounted between camera and tripod plate.
- integration DV sources in complex configuration, using SDI signal interface
- prolongation of DV-sources connections;
- computer-studio devices connection and so on.
DV sources connection is realized through two 6-pin sockets of the same value. Further connections are provided through two buffered SDI (BNC) outputs of the same value. Power supply is realized through any of DV sockets or from the external 5-25 V, 250 mA source. This device can be mounted between camera and tripod plate.
Inputs: 2 x FireWire (IEEE1394) 6pin (IEEE1394TA, IEC 61834, IEC 61883-1/2; DV25)
Outputs: 2 x SDI BNC (10bit 270 mbps, SMPTI - 259M; Level: 1.0 Vp-p; Impedance: 75 ohms)
Power: external 5-25V, 250mA or through any of 2 FireWire 6 pin connector
Outputs: 2 x SDI BNC (10bit 270 mbps, SMPTI - 259M; Level: 1.0 Vp-p; Impedance: 75 ohms)
Power: external 5-25V, 250mA or through any of 2 FireWire 6 pin connector
