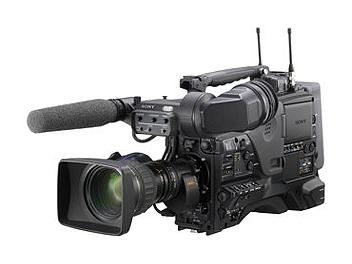

shown with optional accessories

System:
Recording Format : MPEG-2 422P@HL (Long GOP 50M)
Recording Time : 95 min. on dual layer disc at 50Mbps

Other Inputs/Outputs:
DC Output : +12V Out (4pin) 0.5A max.
Light : (2pin) 50W max.
Time Code Input : BNC
Time Code Output : BNC
Network : 100Base-T, RJ-45 FTP
DC Input : +12V In (XLR 4pin)
Lens : 12pin

Other Interfaces:
USB : Maintenance use Proxy Recording on USB Memory(Tentative)
i.Link : 6pin (Lock) FAM
Ethernet : 100Base-T, RJ-45 FTP
TC In : BNC
TC Out : BNC
DC In : XLR 4pin
DC Out : (4pin) 0.5A max.
Light : (2pin) 50W max.
Lens : (12pin)
HD Viewfinder : (BC type) Remote (8pin)

System - Video:
Sampling Frequency : Y: 74.176MHz(59.94i) / 74.25MHz (50i) PB/PR: 37.088MHz(59.94i) / 37.125MHz(50i)
Quantization : 8bit
Compression : MPEG-2 4:2:2P@HL 50Mbps MPEG-2 MP@HL 35/25Mbps MPEG IMX 50/40/30Mbps DVCAM 25Mbps

Camera:
Minimum Illumination : 0.016 lx (F1.4 lens, +42dB, 16Frame)
Slow Shutter : 59.94i/p: 1Frame (1/30) to 16Frame (16/30) 50i/p: 1Frame (1/25) to 16Frame (16/25)

Built-in ND Filters (Optics) :
1:Clear
2:1/4ND
3:1/16ND
4:1/64ND

Built-in CC Filters (Electric) :
A:3200K
B:4300K
C:5600K
D:6300K

Shutter Speed Step :
50I: 1/60, 1/125, 1/250, 1/500, 1/1000, 1/2000
59.94i: 1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000

ECS :
50i/p: 50.0 to 4,700Hz
59.94i/p: 60.0 to 4,300Hz

Spectrum System : F1.4 prism system (with quartz filter)
Sensitivity : F11 (89.9％reflection chart, 2000lx)
Registration : Within 0.02% (all zones, without lens)
Lens Mount : 2/3-inch type 48 bayonet mount
Imager : 2/3-inch type 1920(H) x 1080(V)
Imager Configuration : RGB 3CCDs
ideo S/N Ratio : 54dB (at noise suppressor: OFF)
Modulation : more than 45% (at screen center)
Geometric Distortion : None identified
Smear : -135dB or less
LCD Panel : 3.5 inches color w/back light
Pixel Resolution : 250880
LCD Panel For Timecode : Black and white w/back light
A/D Conversion : 14bit quantization

Video Interface:
Test Out : (BNC) HD Y
Video Out 1 : (BNC) HD SDI, SD SDI
Video Out 2 : (BNC) HD SDI, SD SDI
Gen-Lock In : (BNC) HD Tri-Level Sync

Video In :
(BNC) HD SDI, SD SDI
(BNC) SD Composite

Audio:
Quantization :
24bit (MPEG-2 4:2:2P@HL, MPEG IMX 4ch)
16bit (MPEG-2 MP@HL, MPEG IMX 8ch, DVCAM)

Distortion : 0.08% max.
Dynamic Range : 93dB min.
Frequency Response : 20Hz to 20kHz -1.0dB
Wow and Flutter : Below measurable limit
Number Of Record Channels : 4
Head Room : 20/18/16/12dB
Cross Talk : -70dB max

Video:
Quantization : 8bit

Compression :
MPEG-2 4:2:2P@HL 50Mbps
MPEG-2 MP@HL 35Mbps, 25Mbps
MPEG IMX 50Mbps, 40Mbps, 30Mbps
DVCAM 25Mbps

Sampling Frequency : Y:74.176MHz(59.94i) / 74.25MHz (50i) PB/PR:37.088MHz(59.94i) / 37.125MHz(50i)

General:
Power Requirements : DC12V (-1.1V/+5.0V)
Power Consumption : 40W in Recording w/LCD ON
Recording Format : MPEG-2 422P@HL (Long GOP 50M)
Recording Time : 95 min. on dual layer disc at 50Mbps
Format : HD
Operating Temperature : -5C to 40 C
Storage Temperature : -20C to +60 C
Operating Humidity : 10 to 90%
Continuous Operating Time : Approx.100min (with BP-GL95)
Audio : 4ch 24bits/48kHz
Dimensions (W x H x D) : 332 x 269 x 124 mm (incl. Handle)
Weight : 4.2 kg w/o VF, Mic, and Disc

Operational Manual
Printed Manual (x1)
CD-ROM (x1)
Lens Mount Cap (x1)
Shoulder Strap (x1)
Microphone Cable (3pin <-> 5pin) (x1)
PDZ-1 Proxy Browsing Software (x1)
PDZ-VX10 XDCAM Viewer (x1)
PDZK-P1 XDCAM Transfer (x1)
