Applications

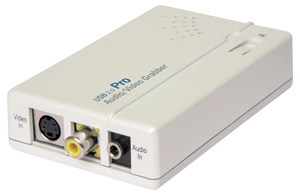

The P-101 is a hardware compression, plug-n-plug real -time video/audio capture box with USB2.0 interface to PC. You can preview, record, or playback audio/video from a VCR, camcorder, or DVD on your PC.

The input audio/video can be captured in MPEG2 or MPEG4 format, which subsequently can be edited, added titles and burn onto a disc or create your own DVD, SVCD ot DVD titles. You can also snapshot a video to create a still image in BMP/JPG format.

USB2.0 interface provides a high-speed transmission rate so you can watch video programs at high resolution up to DVD quality. It offers a simple and easy way to get all of your old VHS tapes or movies on to VCD or DVD so you can preserve your family treasures for a lifetime.

Features

Hardware compression ensures best picture and sound quality during recording and playback.

Hardware compression ensures perfect synchronization between video and audio during playback of an hour-long prerecorded program.

Since all compression work is done by the USB-205 box, it relives your PC from hefty mathematic operation that afflicts most software compression boxes, Therefore, USB-205 ensures a glitch-free recording/playback even if your PC does not have a lastest-generation CPU inside.

External USB 2.0 plug-n-play video/audio capture box, no power adaptor needed.

Composite Video or S-Video input; supports NTSC, PAL and SECAM input system.

Stereo audio input.

Bundled with capture and edit software:
- WinAVWS-GO7007 for preview, record and playback AV signal on your PC, and convert image file format.
- WinDVD_Creator for video editing and burning video into VCD or DVD or SVCD data disc.

Snapshot to save still image as BMP or JPEG file.

Video captured in MPEG1 SIF/MPEG1 VCD/MPEG2 SIF/MPEG2 CIF/MPEG2 HALF/MPEG2 SVCD/MPEG2 VGA/MPEG2 DVD-NTSC/MPEG2 DVD-PAL/MPEG4 CIF/MPEG4 VGA/MPEG4 DVD-NTSC/MPEG4 DVD-PAL) Format

High video resolution up to DVD quality.

Support resolution up to 720x480(NTSC)/720x576(PAL)/640x480 at 30 and 25 frame/sec. respectively.

Preview on full screen and window size adjustable.

Compatible OS: Windows XP

• Manual PDF
